Guardian Scientific LTD.

Guardian

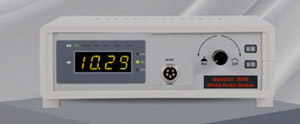

Scientific 206M 4 Point Probe Station은
대학교 연구실에서 많이 사용 하는 2K Ohm 측정용 4Point Probe Station 입니다.
 Range
:1 mili-ohm/square ~2K ohms/square
4-1/2 digit L.E.D 표시
Power:
115/230 VAC
Specfication
|
Range |
Resolution |
|
200 milli ohm |
1 miliohm |
|
2 ohm |
10 miliohm |
|
20 ohm |
100 miliohm |
|
200 ohm |
1 ohm |
|
2k ohm |
10 ohm |
Accuracy:
0.1% (20 Ohm to 20k Ohm )
0.5% (200k Ohm )
표시속도
: reading 300 milliseconds
Operating
Temperature Range: 0° to 50°C
Relative
Humidity: 90% maximum up to 35°C,
70% maximum up to +50°C
외관:
235mmw x 100mmh x 200mmd
, 2.4kg
-기본 모델은 핸드헬드형 탐침 포함됨.
-옵션: 레버 핸들 스테이지.
|
Supply |
110 or 240v AC 50-60 Hz, approximately 15 watts.
|
|
|
|
Current Source |
|
|
Output: |
10nA ~100 mA |
|
Accuracy |
0.1% |
|
Regulation |
0.2% from short circuit to maximum load (highest
load resistance consistent with compliance voltage setting) |
|
Temperature Stability |
0.002% per degree Centigrade (from 0°C to 15°C
and 35°C to 50°C) |
|
Digital Volt Meter |
|
|
Ranges |
199.99mV , 1999.9mV |
|
Indications |
4 1/2 digit LCD |
| Read Rate |
3회/초 |
|
Input |
balanced and floating |
|
Over range |
display blanks out |
|
Dimensions |
235mmw x 100mmh x 200mmd |
|
Weight |
2.4kg |
|
